China factory - Home Automation diy motorized curtain system

Basic Info

Model No.: W10

Brand: ORVIBO

Place Of Origin: China

Plastic Type: Melamine

Types Of Window Rods, Window Rails And Accessories: Curtain Tracks

Species: Pans

Material: Plastic

Metal Type: Cast Brass

Power Supply: Batteries And Usb

Style: Minimalist, Nordic, Art Deco

Smart: Bluetooth

Scenes: Wedding &Amp; Engagement, Grand Event, Thanksgiving Day, Back To School

Need Battery: Yes

Own Brand: Yes

Application: Bedroom, Kitchen, Outdoor, Dining Room, Bathroom, Hallway, Wall Space

Is A Smart Device: Yes

Season: Autumn

Additional Info

Packaging: YES

Transportation: Ocean,Land,Air,Express

Place of Origin: SHENZHEN

Supply Ability: YES

Port: SHANGHAI,TIANJIN,DALIAN

Product Description

Product Introduction

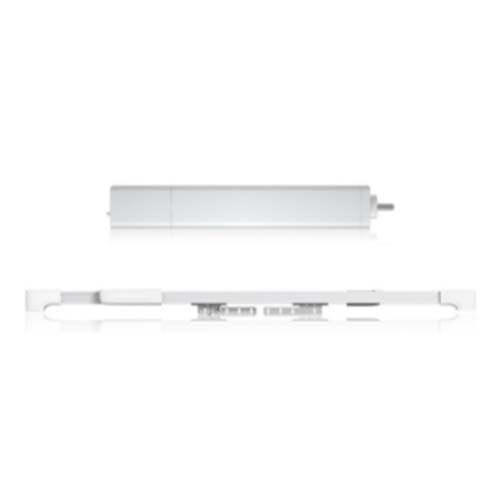

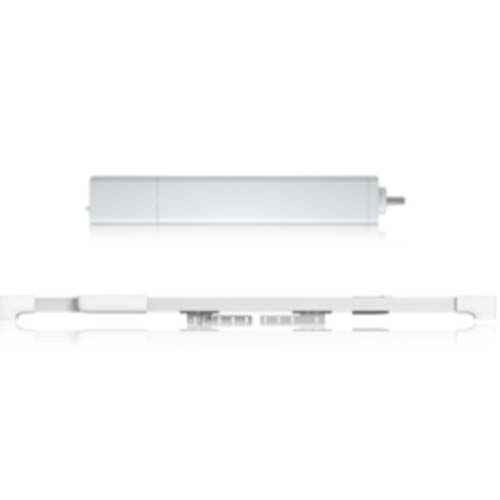

The Super Intelligent Curtain (Basic Edition) is launched by Oribo for users who already have the Oribo Super Intelligent Switch MixPad interactive series. Super intelligent curtain (basic version) includes: Xiaobai intelligent curtain motor+measurement free expandable guide rail.

Basic parameters

Product model W10

Product specifications: 40 * 40 * 320mm

Rated power 36W

Rated input 100-240V~50/60Hz

No load current 0.4A

Rated speed 75rpm

Rated current 1.3A

Rated torque 1.0N. m

Protection level IP41

RF receiving frequency 433.92MHz ± 75KHz

Working temperature -0 ℃ -50 ℃

Relative humidity 20-90% RH

Communication protocol WiFi

Reserved plan

Reserve an AC220V power socket 40cm below the wall and ceiling at one end of the curtain guide rail

Side mounted: Single layer side mounted curtains require additional unit installation of side codes. Double layered side mounted curtains require dual installation side codes.

Top mounted: 1. A single-layer curtain box with a width of 15cm is most suitable, 2. A double-layer curtain box with a width of 22cm is most suitable,

Wiring scheme

Reserve an AC220V power socket 40cm below the wall and ceiling at one end of the curtain guide rail

Product labeling

Unilateral load: 10KG, bilateral load: 20KG.

Height:<3M
