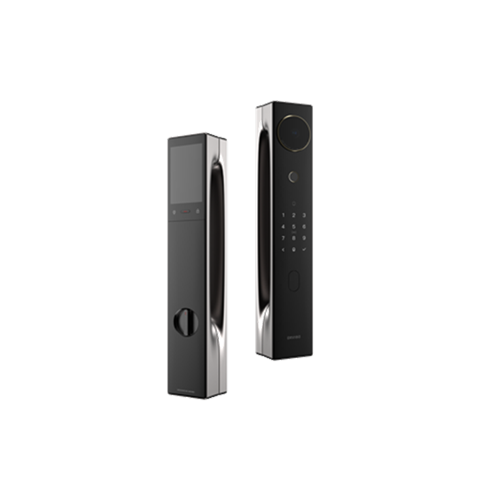

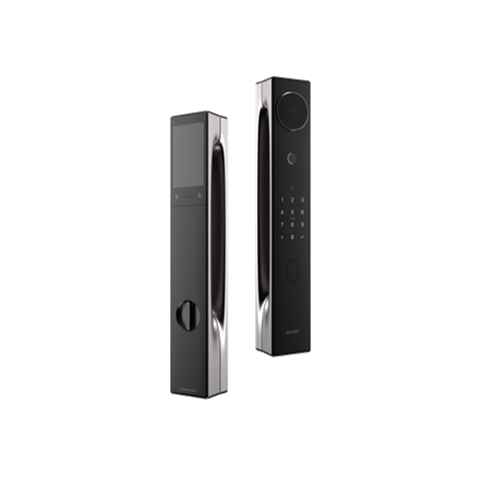

Product Introduction
The industry's first customized intelligent door lock redefines the "technological aesthetic ceiling" of the door lock industry.
AI 3D facial recognition, 1080P/165 ° visual cat eye, 4-inch IPS high-definition internal screen, bio mimetic curve design, dual engine power supply, whole house intelligent linkage, distributed video intercom
Basic parameters
2. Dimensions: 403mm * 70mm * 56mm
3. Local display screen: 4.0-inch IPS high-definition screen
4. Cat Eye Module: 1080P HD, 165 degree wide-angle
5. Static current:<150 μ A (not activated)
6. Dynamic current:<500mA (average)
7. Working temperature: -10 ℃~55 ℃
8. Working power supply: 5000mAh 7.4V lithium battery (main battery), 6 dry batteries (backup battery)
Reserved plan
1. Suitable door type: The standard accessory package is compatible with door thicknesses ranging from 45mm to 120mm. Doors with thicknesses less than 45mm cannot be installed
2. Applicable categories: wooden doors, anti-theft doors, copper doors, and other types of doors with lace sizes wider than 11cm
3. The door lock installer will make holes according to the hole template
4. On site measurement of the size of the door lock side buckle plate is required to confirm the lock body model
5. Outdoor installation is not supported
Wiring scheme
Battery powered, no wiring required
